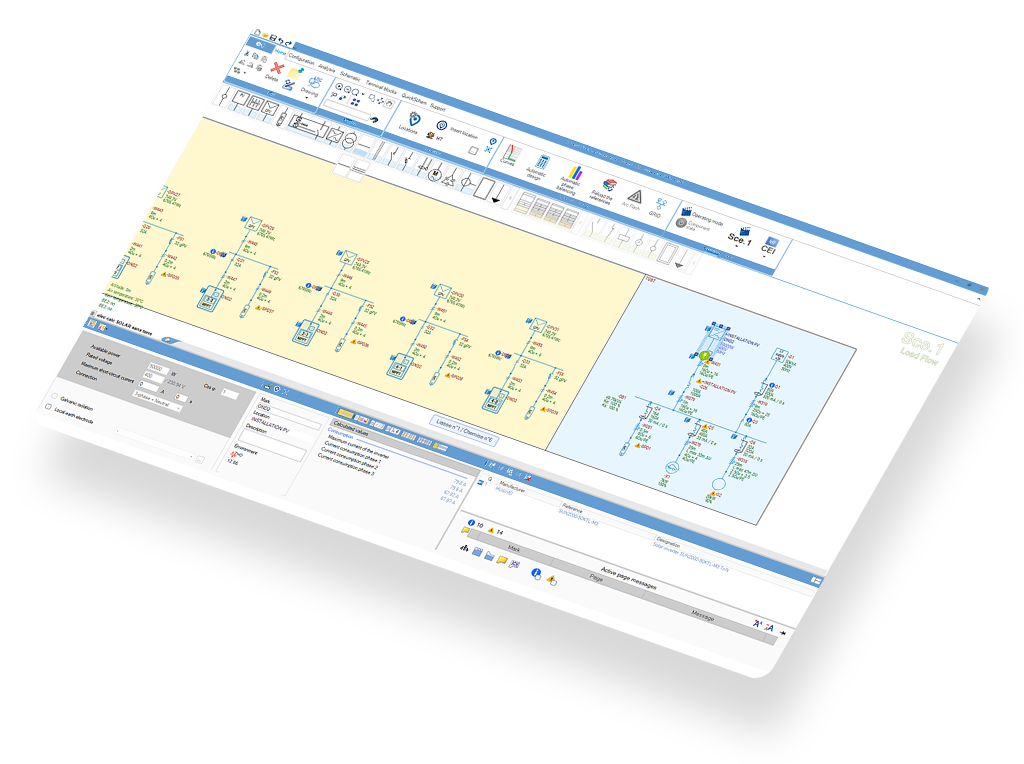

With the archelios CALC software, you can carry out the electrical sizing of any type of photovoltaic installation in its entirety, from the photovoltaic panels to the inverter and from the inverter to the grid.

The software presents a complete and global view of the installation from the photovoltaic modules to the public distribution network, and for self-consumption, from the photovoltaic modules to the electrical panel.

archelios CALC’s promises

Electrical calculation

voltage drop, breaking capacity, protection gauge, cable diameter

Normative controls

UTE C15 712, NF C15-712-1 and IEC 60364 guides

Environment

lightning risk analysis, site temperatures, fire (BE2), explosive (BE3), HV/LV connection, self-consumption

Analysis

Load graph and current/voltage (I/V) curves

Deliverables

calculation note, single-line diagram

Nomenclature

material quantities

Database

multi-manufacturer catalogue, modules, cables, inverters, protections, transformers

Features

Choice of standard

Connection of any installation type

Surge protection analysis

Choice of AC and DC installation modes

AC and DC cable diameter calculation

Calculation of AC and DC protection type

Multi-manufacturer equipment List

Single line diagram in PDF and DWG formats

Material Quantities (Nomenclature)

Customisable design score

Standard

The software provides you with real-time calculation and control of the installation according to NF C15-712 (2008), NF C15-712-1 (2010 and 2013), and IEC-60364 (2002) standards for optimal safety guarantees.

archelios CALC is recognised by the following regulatory bodies: APAVE / DEKRA / SOCOTEC

Integration of more than 100 manufacturer catalogues

Photovoltaic software adapted to your projects

Depending on whether you work on self-consumption residential projects or utility scale ground-mounted power plants, you will not always need the same features. With archelios CALC, you have a tool that’s adapted to your projects.

1 standard Badge1 standard Logo

1 standard

Electrical sizing of PV installations

1350 € ecl. tax / year
Subscribe
2 standards Badge2 standards Logo

2 standards

Electrical sizing of PV installations

1440 € excl. tax / year
Subscribe
1 standard + high voltage module  Badge1 standard + high voltage module  Logo

1 standard + high voltage module

Electrical sizing of PV installations

1500 € excl. tax / year
Subscribe
2 standards + high voltage module Badge2 standards + high voltage module Logo

2 standards + high voltage module

Electrical sizing of PV installations

1590 € excl. tax / year
Subscribe
